Okta SSO

17 min

Steps to Obtain Metadata from Okta: Log in to Okta Admin Console: Go to the Okta admin panel and select the application you’re integrating.

Download Metadata: Look for an option to download the SAML metadata XML file. This file contains all the necessary details you’ll need to fill out in your software.

Extract Information: Open the metadata file in a text editor and locate the required fields as outlined above.

Once you’ve filled out all these details in your software, you should be able to connect the application to Okta via SAML. Be sure to test the connection to verify that authentication is working correctly.

Follow the below step-by-step Okta walk-through and you'll be ready in no time 🚀!

Step 1 | Logged in to Okta

Login to okta admin setup
- Login will look something like the following:
  - https://<company-admin>.okta.com/admin/apps/active

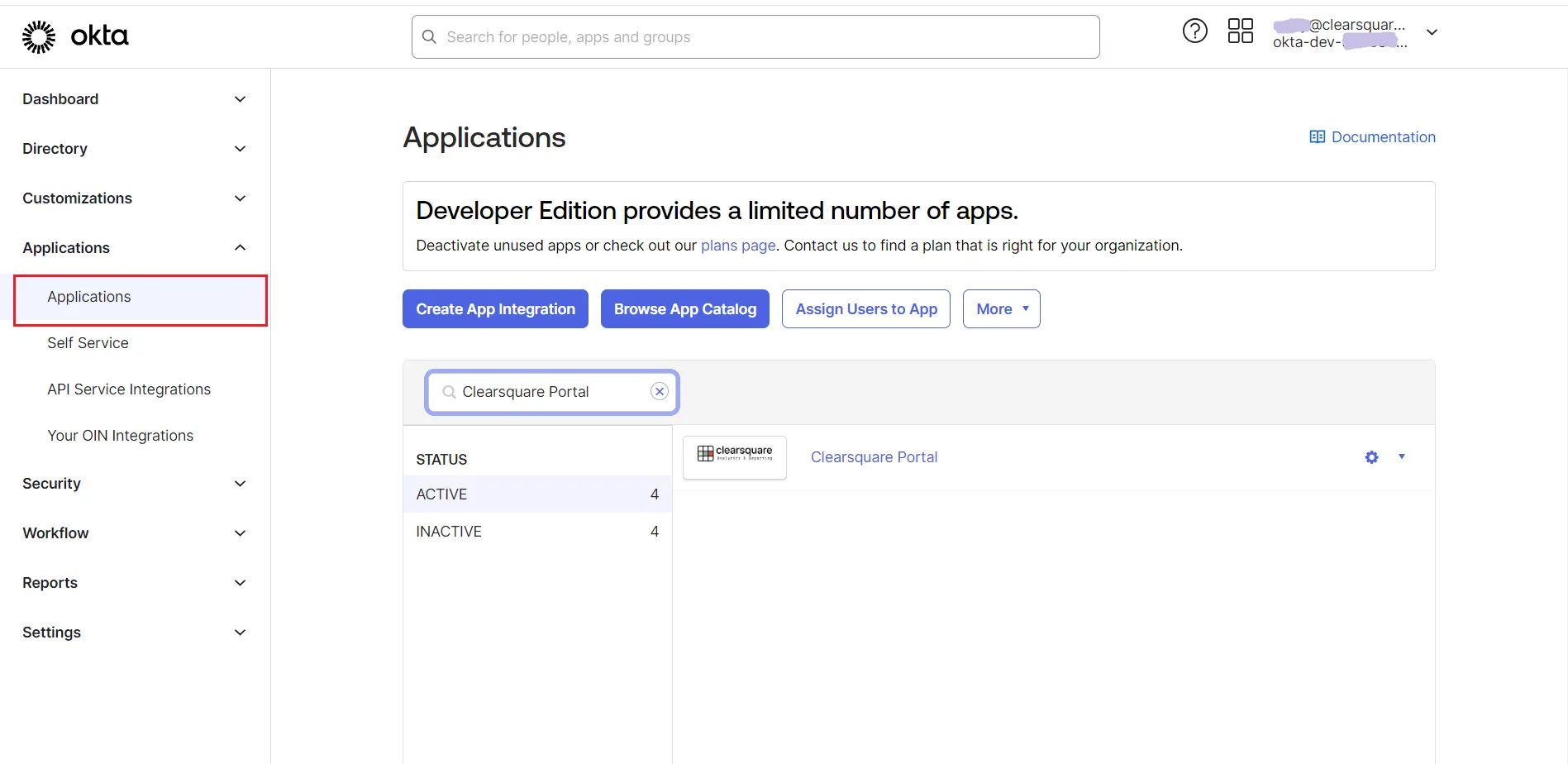

Step 2 | Application

Go to "Application" navigation link listed on website's left

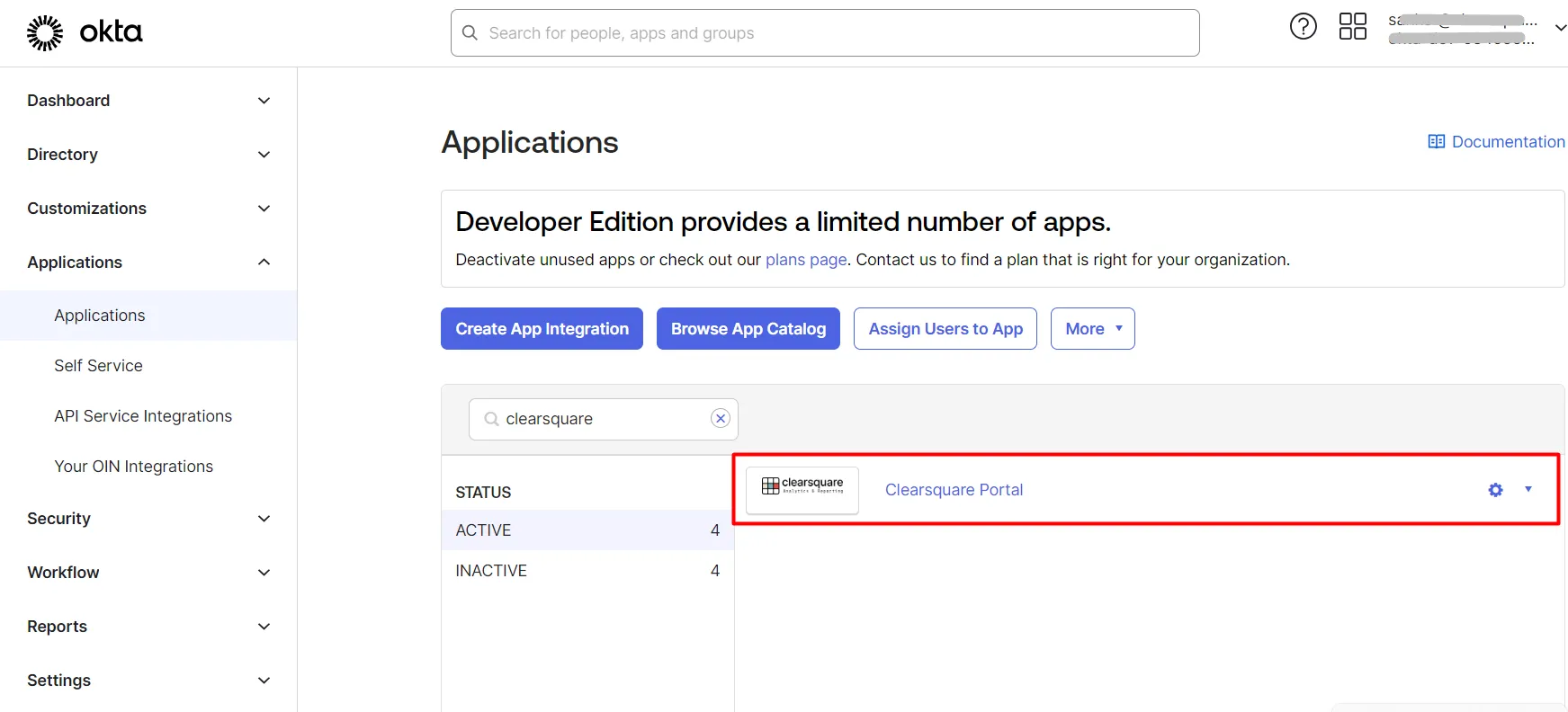

Step 3 | Select your Application

Select your application (in this case, I have chosen my application "Clearsquare Portal").

[Step 3]

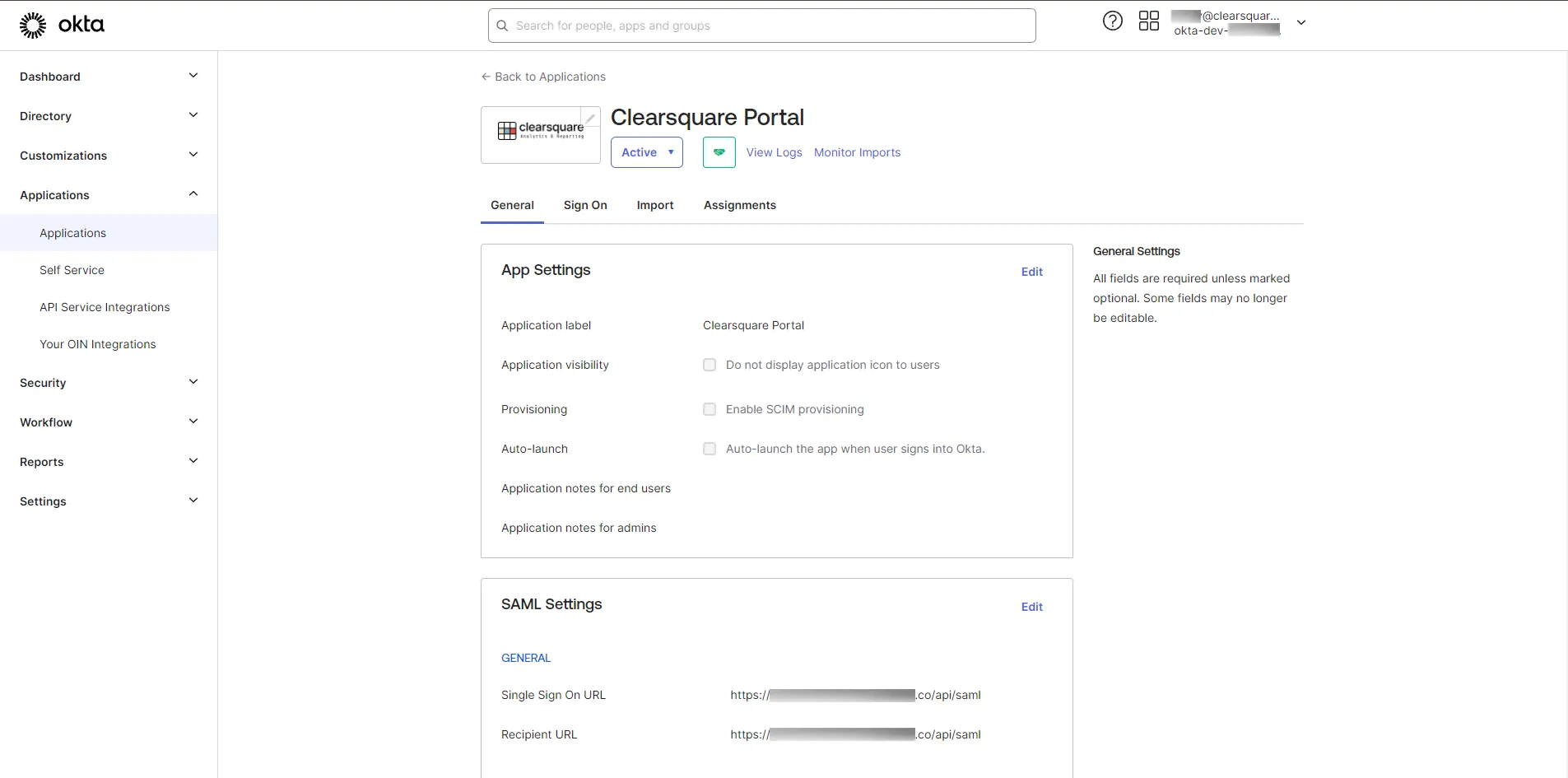

Step 4 | General Tab

[Step 4]

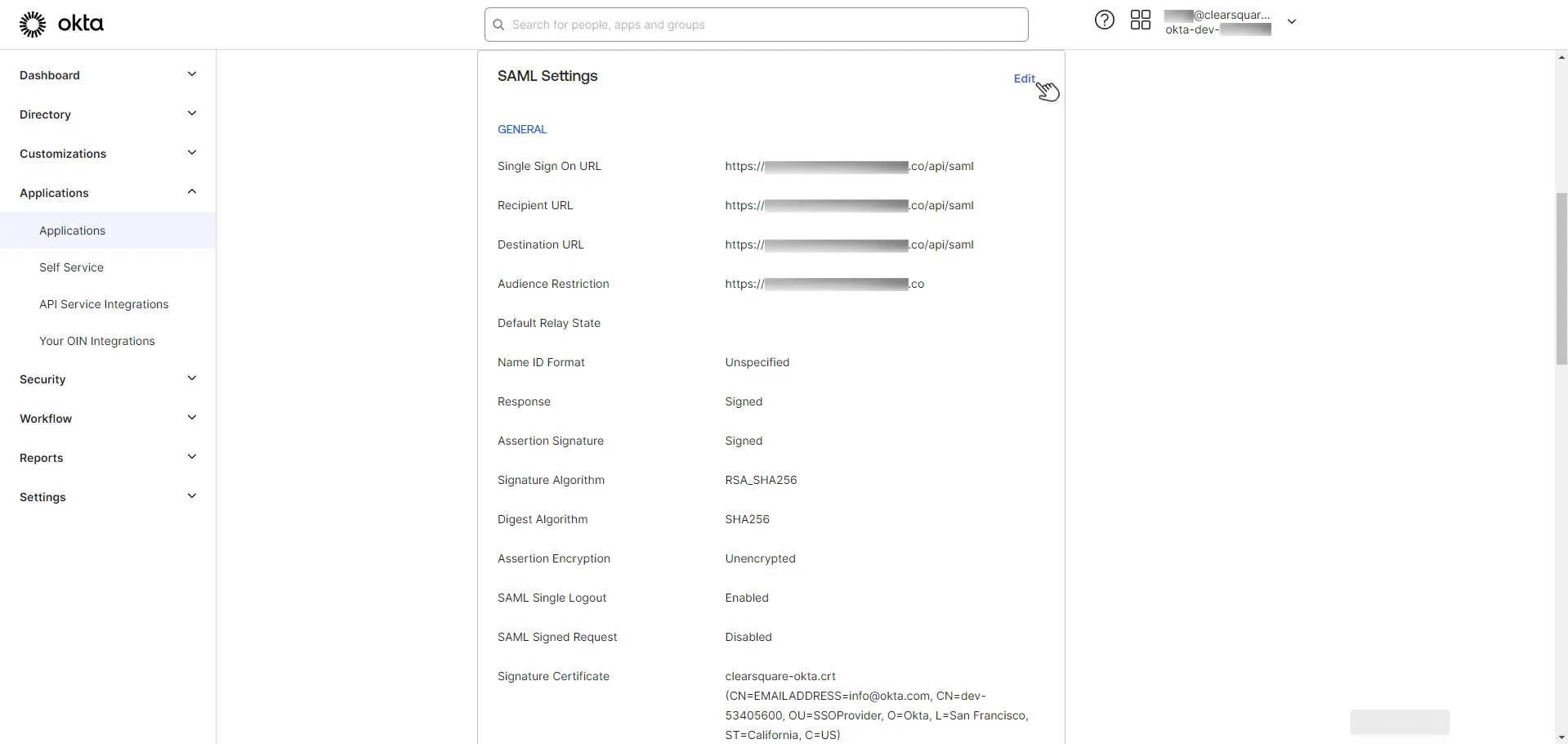

Step 5 | SAML Settings - Edit

Scroll down to the "SAML Settings" section and click the "Edit" button.
- The blurred-out value is your server's API endpoint. This will be exactly the same as your Admin Portal's URL.
  - Example: admin-analytics.yoursubdomain.com

[Step 5]

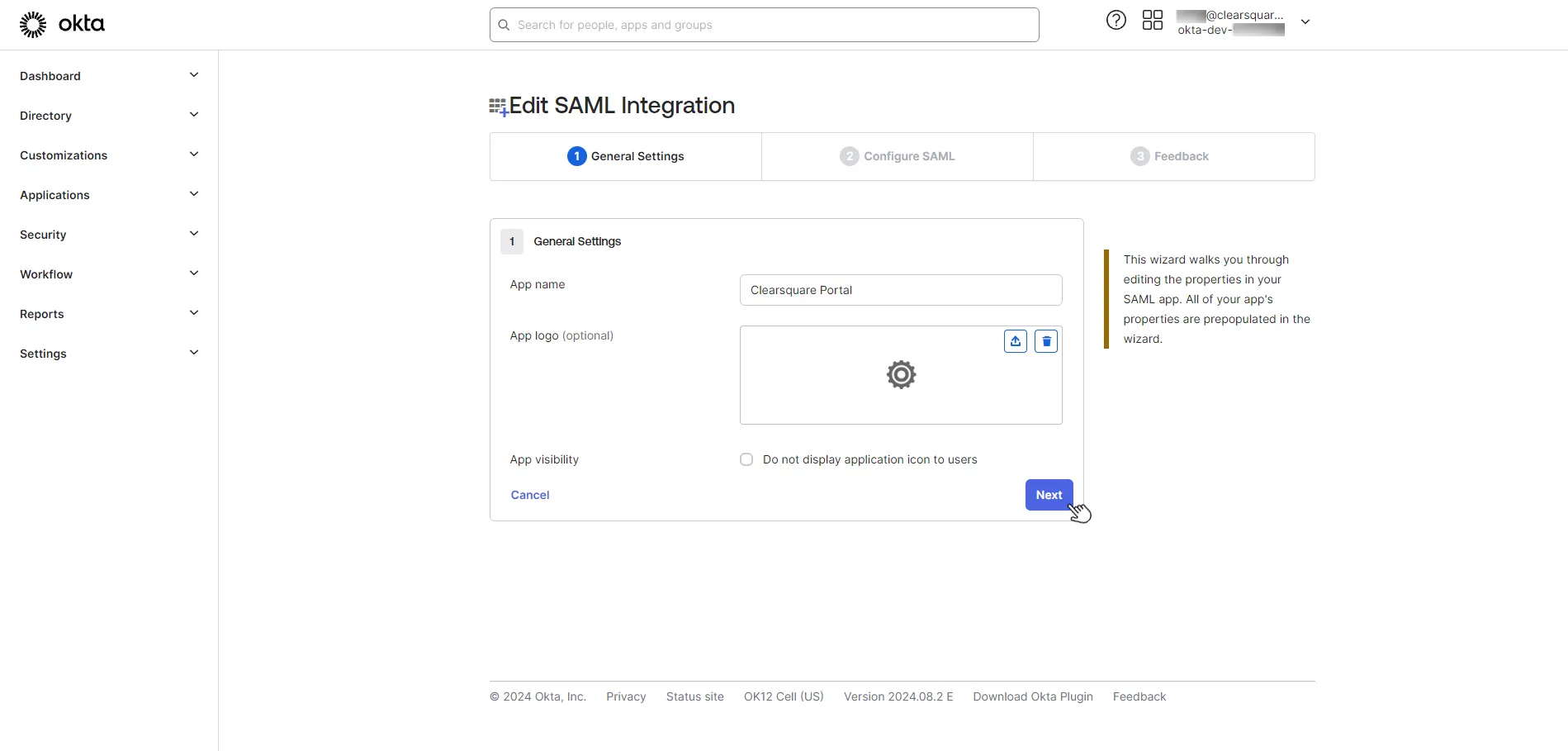

Step 6 | Edit SAML Integration - Basic setup

You will be redirected to the "Edit SAML Integration" section.
- Enter an "App name".
- Upload an image for the "App logo" if you have one.
- Then click on the "Next" button.

[Step 5] Edit SAML Integration - Basic setup

[Step 6]

Step 7 - Configure Single sign-on URL & Audience URI (SP Entity ID)

You will have been navigated to the "Configure SAML" tab.
- Here we will add a Single sign-on URL and URI (SP Entity ID)
- If the "Use this for Recipient URL and Destination URL" is not checked then make sure to select the box ✅ before continuing.

Examples

Single sign-on URL: https://admin-analytics.yoursubdomain.com/api/saml

Audience URI (SP Entity ID): https://admin-analytics.yoursubdomain.com

Default RelayState: Value should be blank. See Step 8 image.

Name ID format: Unspecified

Application username: Okta username

Update application username on: Create and update

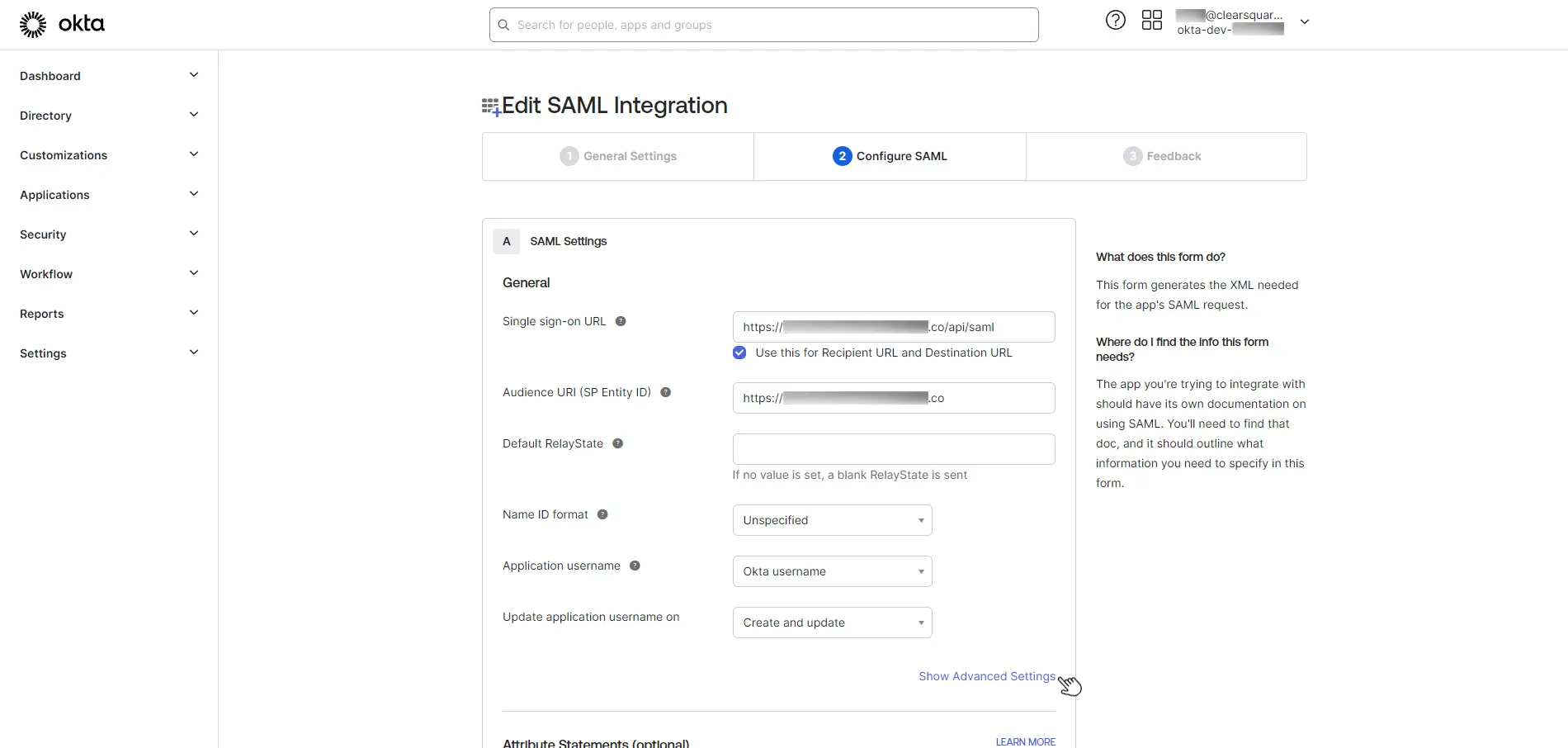

Step 8 | Edit Advanced Settings

At the bottom of the screen you will see the "Show Advanced Settings".
- Click that link to set up logout capabilities.

[Step 8]

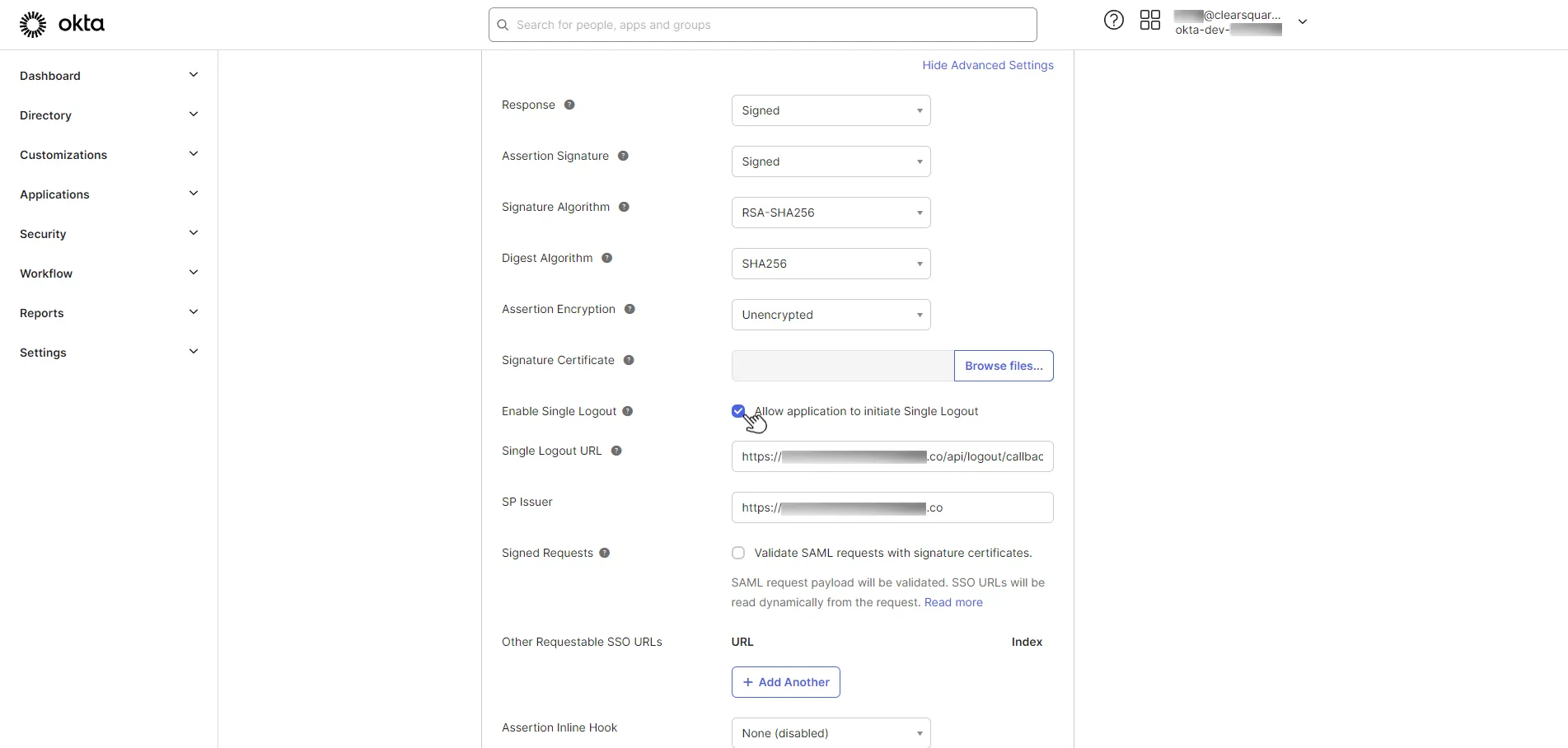

Step 9 | Enable Single Logout

Signature Certificate and Enable Single Logout (optional)
- Upload “Signature Certificate” file (If required).
  - See Logout setup video 👉 [Coming Soon]
- “Enable Single Logout” by clicking on “Allow application to initiate Single Logout”.
  - See Logout setup video 👉 [Coming Soon] for more details.

Single Logout URL: https://admin-analytics.yoursubdomain.com/api/logout/callback

SP Issuer: https://admin-analytics.yoursubdomain.com

[Step 9]

Setting SAML Attribute Statements (optional)
- This will allow for JIT provisioning of users to workspaces, groups, pages and any user-attribute-based filters based on what is provisioned in SSO.
- Go to "Edit SAML Integration" -> "SAML Settings" -> "Attribute Statements" (optional)

Name (Clearsquare)	Name format (optional)	Value (Okta)
user.firstName	Unspecified	user.firstName
user.lastName	Unspecified	user.lastName
user.email	Unspecified	user.email
user.username	Unspecified	user.login
user.workspace	Unspecified	user.company_id
user.group	Unspecified	user.role_id

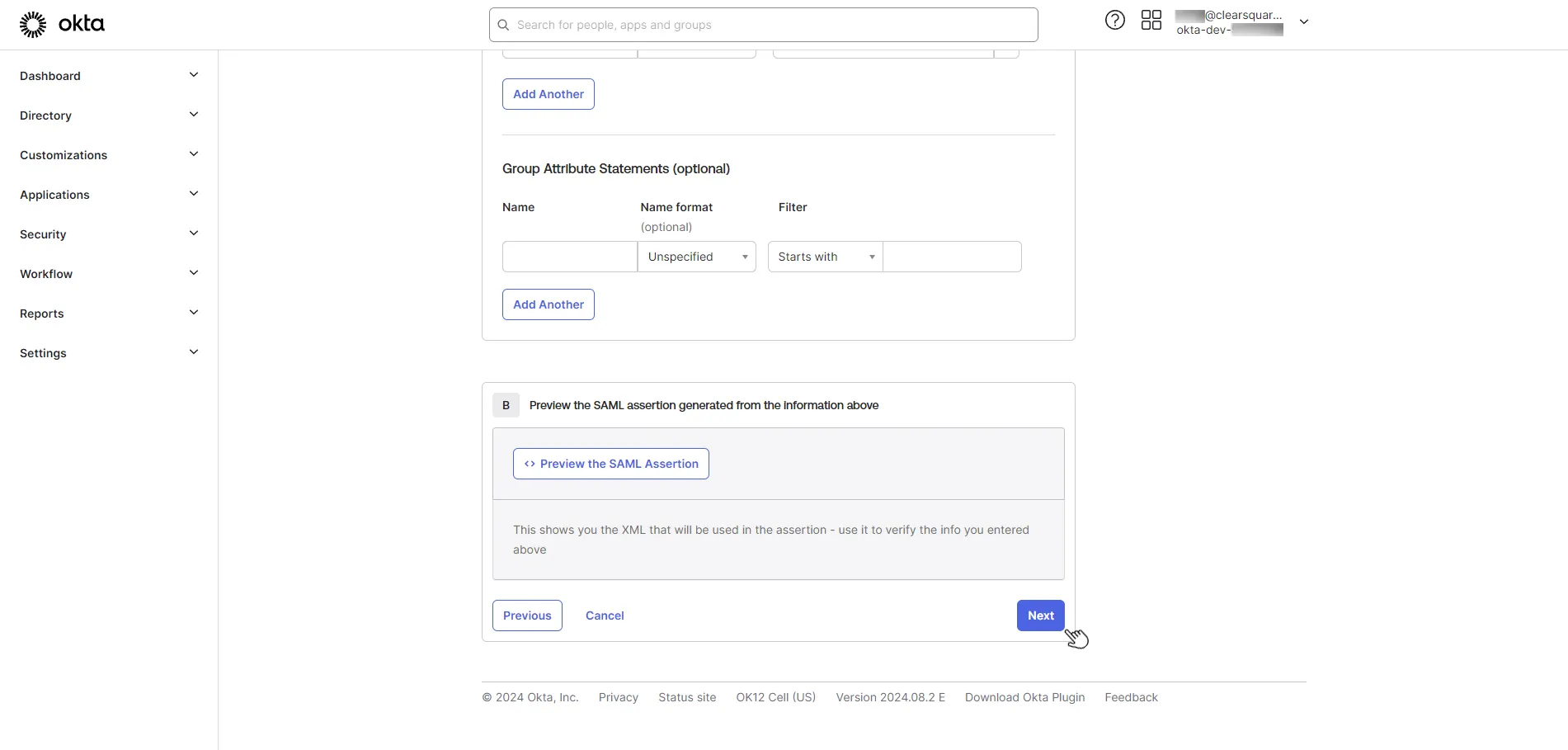

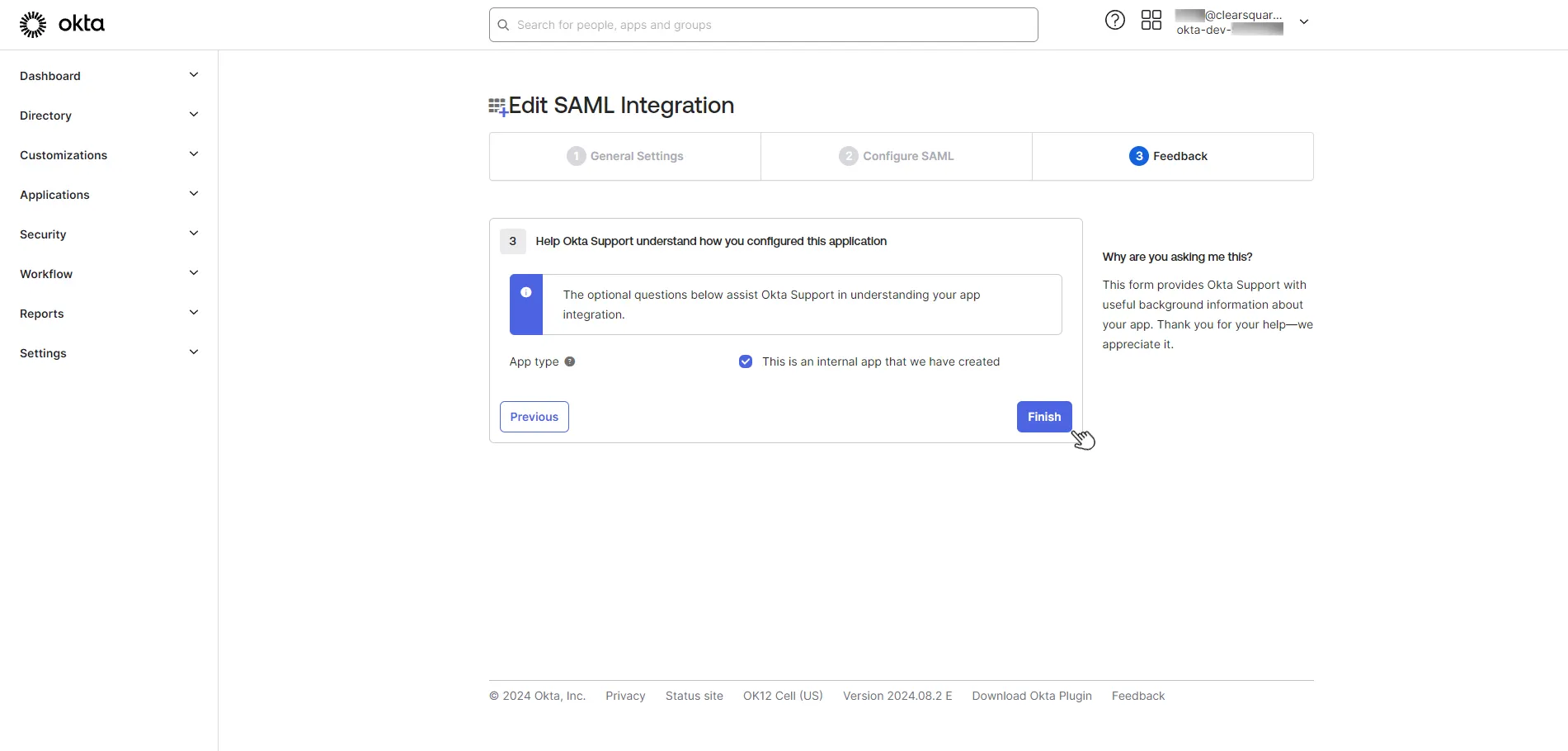

Step 10 | Complete SAML Editing

After that scroll down and click on "Next" button.
You're all set here now click the "Finish" button.

[Step 10]

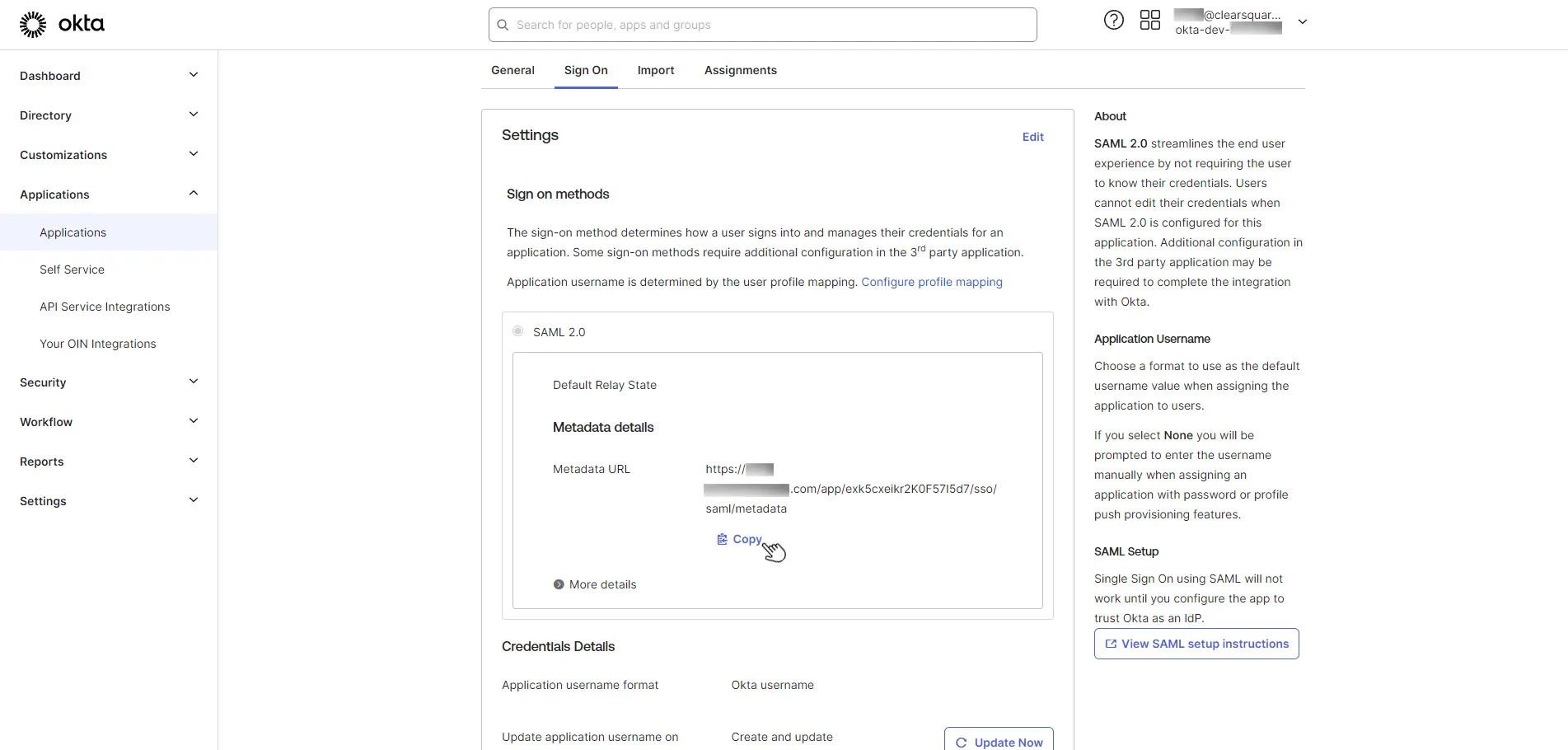

Step 11 | SSO setup Okta

The next step places you on the "Sign On" tab.
- Click the "Copy" to place the Metadata URL value on your clipboard.

[Step 11]

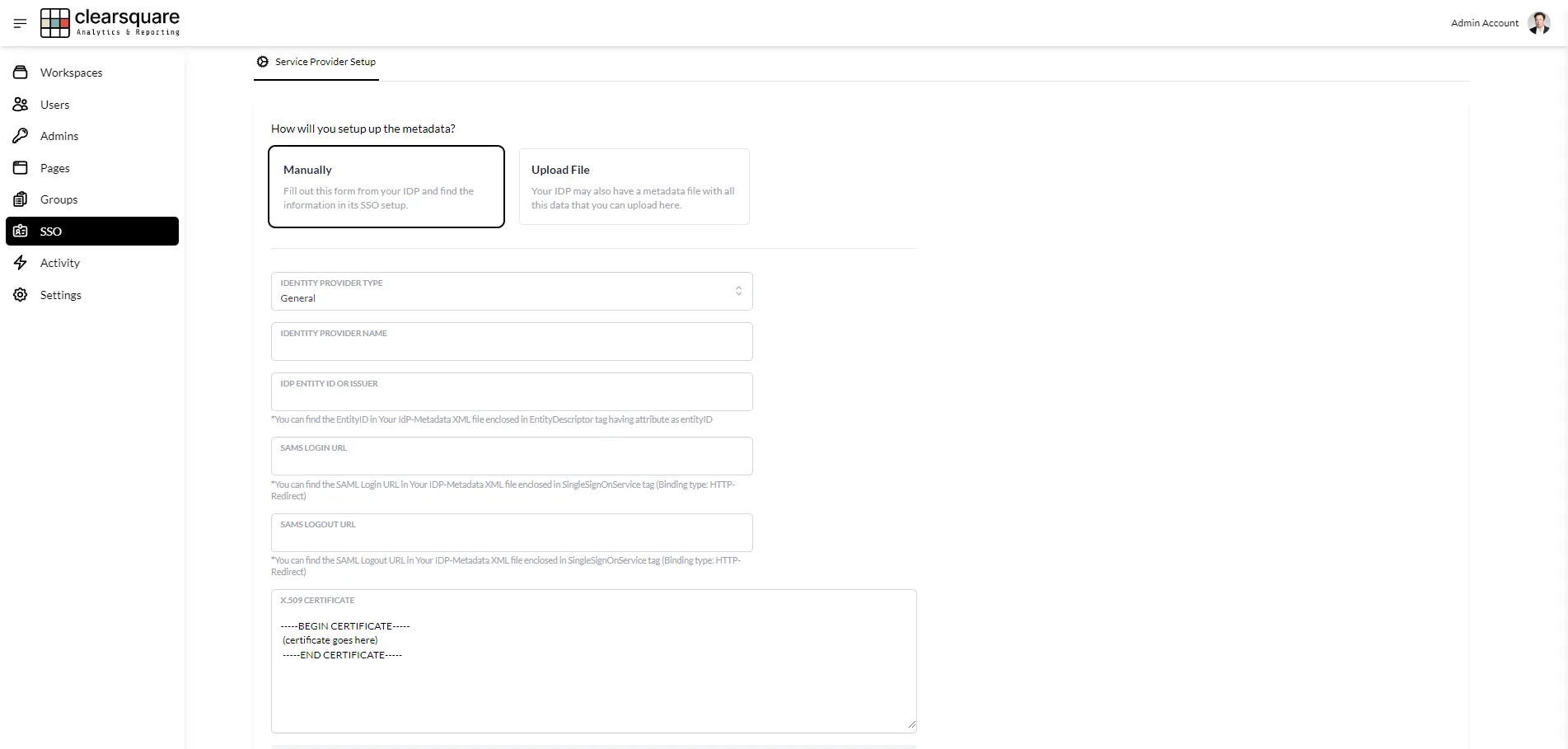

Step 12 | Configure & Verify SSO Settings in the Admin Portal

Go to SSO Add section of the admin portal
- Example link: https://admin-analytics.yoursubdomain.com/sso/add

[Step 12]
